What Is USB (Universal Serial Bus)? Types, Features, And Uses

What Is USB (Universal Serial Bus)? Types, Features, And Uses

USB full form is a Universal Serial Bus. It is a standard for connecting and transferring data between computers and electronic devices. USB was developed to simplify the connection of peripherals (such as keyboards, mice, printers, and external storage devices) to computers, as well as to provide a standardized interface for charging and powering devices. USB technology has evolved over the years, with different versions offering improvements in data transfer speeds and power delivery capabilities. Some common types of USB connectors include USB Type-A, USB Type-B, and USB Type-C.

A Brief History of USB

The history of the Universal Serial Bus (USB) dates back to the early 1990s. Here’s a brief timeline of key events in the development and evolution of USB.

  • Conceptualization (1994): The concept of a universal plug-and-play connection was first proposed by a group of seven companies: Compaq, DEC, IBM, Intel, Microsoft, NEC, and Nortel. They formed the USB Implementers Forum (USB-IF) in December 1995 to develop and promote the USB standard.
  • USB 1.0 (1996): The first USB specification, USB 1.0, was introduced in January 1996. It supported data transfer rates of 1.5 Mbps (low speed) and 12 Mbps (full speed). USB 1.0 had limited power delivery capabilities.
  • USB 2.0 (2000): USB 2.0, introduced in April 2000, marked a significant improvement with a maximum data transfer rate of 480 Mbps (high speed). It also enhanced power delivery for connected devices.
  • USB 3.0 (2008): USB 3.0, also known as SuperSpeed USB, was introduced in November 2008. It increased the maximum data transfer rate to 5 Gbps and further improved power management. USB 3.0 ports are backward compatible with USB 2.0 devices.
  • USB 3.1 (2013): USB 3.1, introduced in July 2013, increased the maximum data transfer rate to 10 Gbps. It also introduced a new USB Type-C connector known for its reversible design and increased power delivery capabilities.
  • USB 3.2 (2017): USB 3.2, introduced in September 2017, brought further improvements by introducing multi-lane operation, allowing for up to 20 Gbps data transfer rates over USB Type-C connections.
  • USB4 (2019): USB4, announced in March 2019, is based on Intel’s Thunderbolt protocol. It offers a maximum data transfer rate of 40 Gbps, increased power delivery, and enhanced support for multiple data and display protocols.

How a USB  Works

USB (Universal Serial Bus) serves as a standardized connection interface between electronic devices. Male and female connectors are used for data communication through USB. USB connectors, such as Type-A, Type-B, Mini-USB, Micro-USB, and Type-C, facilitate physical connections. Plug-and-play functionality allows seamless device connection without system restart. Data transmission occurs through a serial communication protocol, which organizes data into packets for efficient transfer. USB devices have specific endpoints for data exchange, and the technology has evolved through different standards (USB 1.0 to USB 4.0) to increase data transfer speed, power delivery, and overall versatility.

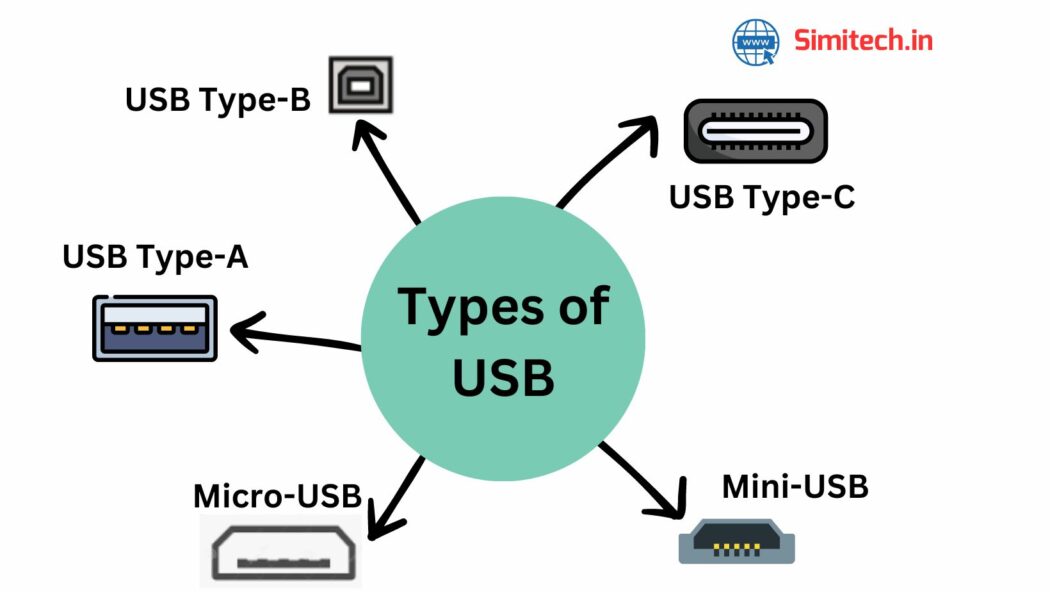

Types of USB

There are several types of USB connectors and standards that have been developed over the years. Here are some common types of USBs.

Types of USB
  • USB Type-A: This is the standard rectangular USB connector that is commonly found on computers and chargers. It is often used to connect peripherals like keyboards, mice, and external drives.
  • USB Type-B: This connector is more square or trapezoidal and is often found on printers, scanners, and other larger peripherals.
  • USB Type-C: A smaller, reversible connector that has become increasingly popular. USB Type-C is found on many modern devices, including smartphones, laptops, and tablets. It supports faster data transfer and higher power delivery.
  • Micro USB: This smaller connector was common on many older smartphones and other small devices. It has been largely replaced by USB Type-C in newer devices.
  • Mini USB: An even smaller connector that was used in the past for some digital cameras, MP3 players, and other small devices. It has become less common with the advent of Micro USB and USB Type-C.

Benefits of Using USB

The Universal Serial Bus (USB) has several advantages, contributing to its widespread adoption and use in various electronic devices. The advantages of USB contribute to its popularity and make it an integral part of modern connectivity solutions.

  • Versatility: USB is a versatile interface used for connecting a wide range of devices, including keyboards, mice, printers, external storage, smartphones, cameras, and more.
  • Plug-and-Play: USB devices can be hot-swapped, meaning they can be connected or disconnected without the need to restart the computer, thanks to the plug-and-play nature of USB.
  • Power Supply: USB provides power to connected devices, allowing for device charging and eliminating the need for separate power adapters for many peripherals.
  • Standardization: USB is a widely adopted and standardized interface, ensuring compatibility between different devices and manufacturers. Nowadays USB ports can be available in most electronic devices
  • Data Transfer Speed: With evolving USB standards (USB 2.0, USB 3.0/3.1, USB4), data transfer speeds have increased as compared to other data transmission media, allowing faster communication between devices.
  • Backward Compatibility: Newer USB versions are backward compatible with older versions, allowing devices with different USB specifications to work together.
  • Compact Connectors: USB connectors are relatively small and come in various shapes (Type-A, Type-B, Type-C), making them suitable for compact devices and promoting design flexibility.
  • Wide Industry Support: USB is supported by a broad range of industries, including computing, telecommunications, and consumer electronics, making it a ubiquitous and widely accepted standard.
  • USB Hubs: USB hubs allow users to expand the number of available USB ports on a host device, enabling multiple peripherals to be connected simultaneously.
  • USB Power Delivery (USB PD): USB PD allows for higher power delivery, supporting the charging of a diverse range of devices, including laptops, monitors, and other power-hungry peripherals.

FAQs On USB Full Form

What is a USB Full-form

USB Full Form Universal Serial Bus.

Q1. what is a USB hub

A USB hub is a device that expands a single USB port into multiple ports, allowing you to connect and use multiple USB devices simultaneously.

Q2. How fast is USB data transfer?

USB data transfer speeds vary across different versions. USB 2.0 has a maximum speed of 480 Mbps, USB 3.0 can reach up to 5 Gbps, USB 3.1 supports 10 Gbps, and USB 4.0 can go even higher.

Q3. What is USB Power Delivery (USB PD)?

USB Power Delivery is a protocol that allows for higher power levels to be delivered over USB connections, enabling faster charging for devices.

Q4. Can I use a USB 3.0 device in a USB 2.0 port?

Yes, USB is backward compatible. You can use a USB 3.0 device in a USB 2.0 port, but the data transfer speed will be limited to the capabilities of the USB 2.0 standard.

Q5. Can USB transmit power?

Yes, USB can transmit power, and this feature is used for charging various devices like smartphones, tablets, and other peripherals.

Q6. Are all USB cables the same?*

No, USB cables come in various types and standards. Different cables may have different connectors, data transfer speeds, and power delivery capabilities.

Q7. What is the future of USB technology?

The future of USB technology includes ongoing advancements, with USB 4.0 being the latest standard, offering even higher data transfer speeds and compatibility with Thunderbolt technology.
